Measure Twice and Cut Once!

We’ve all heard the old carpenter’s adage that one should always prepare thoroughly and carefully before taking action. Having an architect produce Measured Drawings is an invaluable step in documenting and understanding an existing structure. These drawings translate your physical space into a clear visual format, helping you better understand your property’s layout and potential. The reality is that walls and floors are seldom as plumb and level as we want and this process can reveal those discrepancies. A thorough documentation process can also identify hidden features that may not be immediately apparent, such as bulkheads and sloped ceilings that may house utility conduits. This information can be especially helpful for anyone who is planning renovations, modifications or additions.

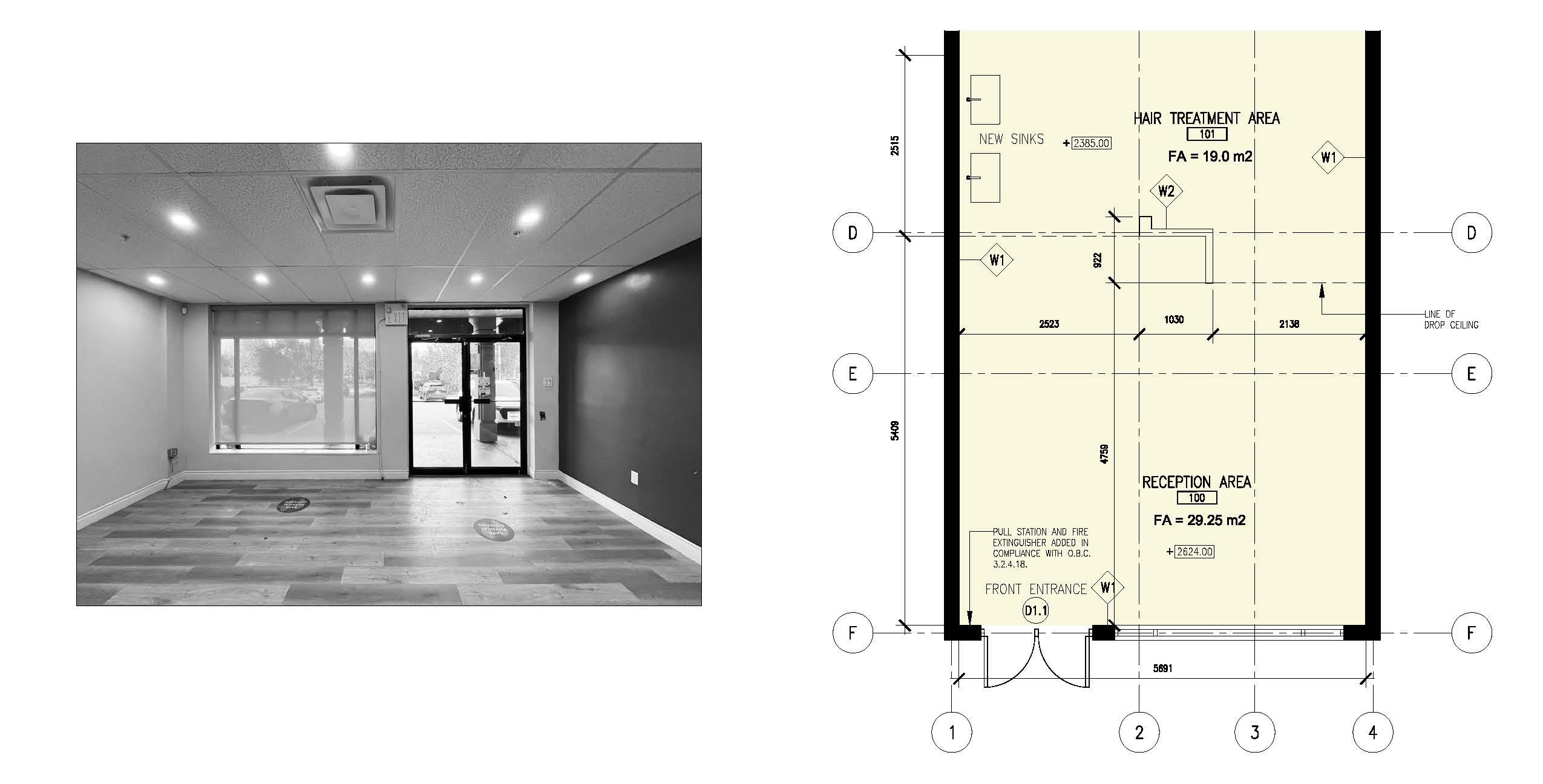

Measured drawings are accurate, to-scale representations of an existing building or site. They capture the current state of a structure, including:

  • Precise dimensions
  • Spatial relationships
  • Architectural features
  • Structural elements
  • Utility locations
  • Digitization of existing drawings (i.e. blueprints) to CAD format.

Benefits of Measured Drawings

1. Accurate Documentation

Measured drawings provide a reliable record of your property’s current state. This documentation is crucial for:

  • Planning renovations
  • Designing additions
  • Maintaining historical records
  • Future property sales

2. Informed Decision Making

With accurate measurements and visual representations, you can:

  • Visualize potential changes
  • Identify structural limitations
  • Plan space utilization effectively
  • Make informed design choices

3. Cost Savings

Investing in measured drawings can lead to significant cost savings by:

  • Reducing errors during construction
  • Minimizing change orders
  • Enabling accurate material estimates
  • Facilitating efficient project planning

4. Regulatory Compliance

Measured drawings are often required for:

  • Obtaining building permits (Toronto Green Standards TGS, Zoning By-law Amendment ZBA, Committee of Adjustment COA, Ontario Land Tribunal OLT)
  • Meeting City of Toronto Zoning By-law (569-2013) requirements
  • Historical preservation applications (Ontario Heritage Act)
  • Landscape preservation applications (Toronto Region Conservation Authority TRCA)
  • Insurance documentation

5. The Architect’s Role

When creating measured drawings, an architect brings valuable expertise:

  1. Precision: Architects use advanced tools and techniques to ensure accuracy.
  2. Comprehensive documentation: They capture all relevant architectural and structural details.
  3. Professional interpretation: Architects can identify potential issues or opportunities within the existing structure.
  4. Design insight: The process informs initial design concepts for renovations or additions.

6. Why It’s Worth the Investment

Measured drawings provide a solid foundation for your project by:

  • Enhancing communication between you, your architect, and contractors
  • Streamlining the design process
  • Reducing the risk of costly mistakes during construction
  • Creating a valuable record of your property for future use

By investing in professional measured drawings, homeowners and business owners set themselves up for smoother, more successful renovation and construction projects. This crucial first step ensures that all subsequent design and building work is based on accurate, comprehensive information about your property.
